What do crankset numbers mean?

The numbers on the chainrings simply refer to the number of teeth on each chainring. A standard crankset will have the 53 and 39 tooth rings (obviously the 53 tooth ring is the large one and the 39 tooth one is the small one), while a compact crankset typically has 50 and 34 tooth rings.

What is a 52 36 crankset?

52 36 cranksets (which are called semi-compact or mid-compact cranksets) are very good improvements to compact and standard cranksets because they make you fast and are easy to swap. They are usually found on bikes that are designed to go fast such as road bikes and time trial bikes.

How do you read a crankset?

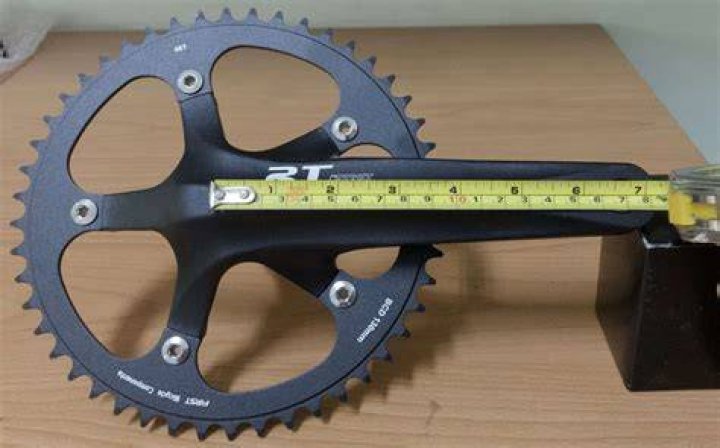

Crank length: This is measured from the centre of the bottom bracket axle to the centre of the pedal axle. Most stock bikes have cranks of 170mm or 175mm, but you can get them as short as 140mm and as long as 190mm. Choose crank arms that suit your inside leg measurement for optimum comfort and control.

What is a 53/39 crankset?

Standard cranks have 53/39 gearing, meaning they have a 39-tooth small ring and a 53-tooth big ring. Ring is short for chainring, which is what the front gears are called that are bolted to the cranks. The bolt circle diameter (BCD) of standard cranksets is 130mm.

What does a 34 50 crankset mean?

Standard Setup

Currently, the most common gearing setup on new road bikes is a 50/34 chainset with an 11-28 cassette. This means that the big and small chainring have 50 and 34 teeth, respectively, and the cassette's smallest cog has 11 teeth and its largest cog has 28 teeth.

Can I use 52 34 chainrings?

Of course, you can use 52/34 chainrings if it suits your needs and purposes. It runs well and serves a lot of benefits but has downsides too. Your compact and semi-compact cranksets can be modified to give you this combination.

What does an 11 32 cassette mean on a bike?

The notation you've noticed simply means that for one of these cassettes, the smallest sprocket has 11 teeth, the largest has 32 teeth. And the second cassette has smallest sprocket 12 teeth, largest sprocket 25 teeth. So these numbers are basically the "range" of gears covered by a cassette.

What is the difference between 172.5 and 175 cranks?

From 172.5mm to 175mm, you have only 2.5mm difference. We set our saddle height when the pedal is at 6 o'clock position. So you should lower the saddle for 2.5mm, since your pedal is 2.5mm lower than it was.

What size cranks do pros use?

Pros often use a 55×11-tooth high gear for time trials. On flat or rolling stages they might have 53/39T chainrings with an 11-21T cassette. In moderate mountains they switch to a large cog of 23T or 25T. These days, they've joined the big-gear revolution like many recreational riders.

What is the difference between 50 34 and 52 36?

Basically, the 52/36 will allow 5% higher top-speed before spinning-out compared to the 50/34. (Many say that your aero-tuck and other factors are more important at those speeds anyway.) But on the hills, you'll find the 36 to be harder to turn than the 34.

How do I know what crankset to buy?

Cranks come in a range of sizes, most commonly from 165mm to 190mm, and ideal crank length is often determined by three factors: your height, your cycling discipline and your personal preferences. If you change your crank length, it will change how it feels to pedal your bike, and it may change your fit on your bike.

What gear ratio is best for climbing?

Based on your anticipated speed and minimum tolerable cadence, are the gear ratios on your bike sufficient? A common setup on a road bike adapted for climbing is a compact road crankset with 50-34 chainrings and an 11-32 cassette, which gives a lowest gear of 34:32 or a ratio of 1.06:1.

How do I choose a crankset for my teeth?

The larger chainring gives you bigger, harder to turn gears that move you further per pedal revolution – so it's suitable for higher speeds – while the smaller chainring gives you gears that are easier to turn but move you a shorter distance per pedal revolution – so it's suitable for lower speeds, including riding ...

Do PROs use compact crankset?

Compacts are definitely used by PROs, but only on really steep stages. The opposite end of the spectrum, PROs will often ride 53-42s (or some variation, sometimes 44, sometimes 40) for the classics.

Is a bigger chainring faster?

Will you go faster if you replace the stock chainring on your bike, like the 50t one shown here, with a larger chainring, like the 56t behind it? 99% of the time the answer is no, you will likely go slower. That example is for a 50 tooth front, 12 tooth rear sprocket.

What does compact crankset mean?

A compact crank refers to a road bike crankset with relatively smaller chainrings that can make pedaling easier. While 'standard' cranks come with a 53-tooth large chainring and a 39-tooth small ring, compact cranks usually feature 50- and 34-tooth rings.

What gearing does Chris Froome use?

Gearing consisted of 52/38 chainrings, and an 11-28 cassette, which he turned at an average cadence of 97rpm. Using this information, and some complicated maths, we can estimate that Froome spent most of his time using a 38x21 gear ratio.

Will shorter cranks help my knees?

Pain is relieved. Just by installing shorter crank arms, without any other adjustment, the knee at maximum flexion is lowered by 7.5 mm. That difference provides approximately 3° to 4° of relief.

Are longer crank arms better?

As you'll know from using a crowbar or a wheelbarrow, the longer the lever, the greater the load that can be lifted; so a longer lever arm allows a rider to create more torque than a rider with similar leg strength, but a shorter lever arm. But there's more to going faster than driving a big gear.

What is the correct crank length for me?

Crank length is measured from the centre of the bottom bracket axle to the centre of the pedal axle. If you're not sure what length the cranks on your bike are, the quickest way of finding out is typically to just look at the backside of your cranks, just below the pedal axle.

Which is better 170mm or 175mm crank arm?

XC - Possible sizing needed depending on ride lengths, but 175's are what is recommended for more leverage. Trail/Enduro - 170mm crank arm length is the most commonly used size and is recommended to keep a good leverage ratio and have a bit more ground clearance due to having more travel.

Does crank length affect gear inches?

For a given set of chainrings and rear cogset, the bike's top gear is higher. Likewise, the lowest gear in the cassette is slightly lower. The problem we have today is that many triathletes seem to forget that 'small' detail – that crank length affects gearing. Short cranks are all the rage, and for many good reasons.

What is a 12/25 cassette?

8 speed 9 speed 10 speed 11 speed. Each sprocket has a different amount of teeth. A higher amount of teeth makes it easier to pedal than a low number and vice versa. Most road bikes come supplied with a 12–25T cassette, where the smallest sprocket has 12 teeth and the largest sprocked has 25 teeth.

What does 11 42t cassette mean?

Sprockets vary in size according to the number of teeth they have. A cassette may therefore be sized as 11-32t. The first number refers to the number of teeth on the smallest sprocket (the highest gear, for fast pedalling at speed) and the second number to the biggest sprocket (the lowest gear, for climbing hills).

Is a 12/25 cassette good for climbing?

The vast majority of road bikes come with a 12-25 cassette, which is suitable for most cycling terrain when paired with a compact or standard chainset. If you ride a lot of hills or struggle with hill climbing, a cassette with a lower ratio largest sprocket (27 or more teeth) may be beneficial.
