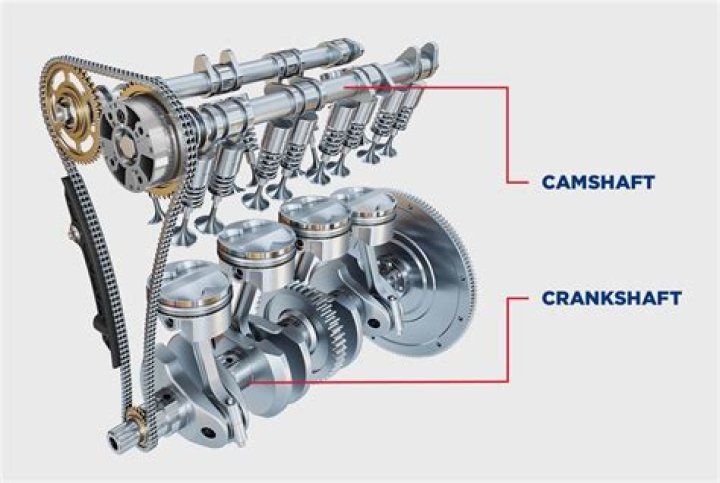

Where is crankshaft placed?

What Is a Crankshaft? Located in the “bottom end” of an engine, the crankshaft harnesses the tremendous force of combustion (the violent burning of the air and fuel in the combustion chamber) by thrusting the pistons downward, causing the crankshaft to rotate. This rotation is the power source of an engine.

How is the crankshaft held in place?

In a piston engine, the main bearings are the bearings which hold the crankshaft in place and allow it to rotate within the engine block.

What does the crankshaft attach to?

The crankshaft is connected to the fly-wheel (used to smooth out shock and convert energy to torque), the engine block, using bearings on the main journals, and to the pistons via their respective con-rods.

What are the parts of a crankshaft?

A crankshaft consists of crankpins, crank webs (crank arms or cheeks), balancing weights, and main journals. The large end of the connecting rod is attached to the crankpin of the crankshaft. During one stroke, the center-to-center distance between the crankpin and the crankshaft is half of the piston displacement.

What is meant by crankshaft?

Definition of crankshaft

1 : a shaft driven by or driving a crank. 2 : a shaft consisting of a series of cranks and crankpins to which the connecting rods of an engine are attached.

How does a crankshaft move?

A crankshaft is a part in a reciprocating engine that rotates due to the reciprocating motion of the pistons. However in a pump, the crankshaft's motion causes the piston to move back and forth.

Where are the main bearings located?

Main Bearing – Located on the Crankshaft Main journals. Big End Bearing – Located at the 'Big End' of the Connecting Rod, where it connects to the Crankshaft.

Where are engine bearings located?

Main bearings are mounted in the crankcase. A main bearing consists of two parts: upper and lower. The upper part of a main bearing commonly has an oil groove on the inner surface. A main bearing has a hole for passing oil to the feed holes in the crankshaft.

Which bearing is used in crankshaft?

Plain bearings are used in main bearings and connecting rod bearing. Its main application is in the piston and connecting rod in engine.

What is a crankshaft pulley?

The crankshaft pulley (harmonic balancer) is mounted on the end of the crankshaft. Its purpose is to turn the drive belts that operate the engine accessories (alternator, air conditioning compressor, etc.)

What is a crankshaft pin?

A crankpin is the part of the crank of a crankshaft to which the connecting rod is attached. Crankpins transfer up-and-down motion between the crankshaft and connecting rod. The big end of the connecting rod is connected to the crankpin of the crankshaft by way of a bearing.

What part is driven by the crankshaft?

The crankshaft drive is the complete mechanism which converts the up and down movement of the piston in the engine into the rotary motion of the crankshaft.

Which part of a car turns the crankshaft?

The camshaft controls the opening and closing of the valves. The distributor makes the spark plugs spark, which ignites the fuel-air mix. The resulting explosion forces a piston to move down which in turn causes the crankshaft to rotate.

What does a piston do?

As a component of combustion engines, the piston converts the energy released during combustion into a mechanical action and transfers it to the crankshaft in the form of a torsional force via the piston pin and the connecting rod. When the engine is running, the piston moves up and down in the cylinder.

What causes engine bearings to fail?

Most of engine bearing failures are caused by one of the two factors: - Mixed lubrication with direct metal-to-metal contact between the bearing and crankshaft surfaces; - Fatigue of the bearing material. Mixed lubrication is one of the main causes of engine bearing failures.

What causes engine rod failure?

Rod bearing failures are the result of lubrication that is inadequate. There are several factors that could account for this issue, including a low oil level or an oil pump that is faulty. Aside from stalled oiling passages, isolated bearing failures may also result.

What causes rod knock?

A rod knock is a deep rapping sound that comes from within the engine. It is caused by rod-bearing wear or damage. The vehicle's connecting rod bearings have excessive clearance, causing additional movement. As the piston changes direction, the metal starts hitting metal, which produces the knocking noise.

How do you tell if a crank needs to be turned?

Generally speaking, if the crank shows less than 0.001-inch runout, it's probably fine. If the crank shows more than 0.001-inch runout, it needs to be either straightened or replaced.

How do I know if my crankshaft is damaged?

Signs of a bad crankshaft

1. A forging or casting flaw.
2. Insufficient lubrication.
3. Bearing wear.
4. Loose bearing main caps.
5. Distorted bearing bores.
6. Improper bearing clearance.
7. Bearing failure.

How much does it cost to replace crankshaft bearings?

How Much Does It Cost To Replace Crankshaft Bearings? A crankshaft replacement costs about $50. You can expect to pay between $130-$165 for labor, plus $150-$240 for new crankshafts.

What is the difference between a crank and a pulley?

Function. A crankshaft pulley powers components on the crankshaft. Crankshafts are responsible for driving the car wheels. Crankshaft pulleys transmit mechanical power and torque, or the force of motion, through the pulley system to additional car elements, such as the power steering pump and alternator.

Where is the harmonic balancer located?

A common part found on all high-performance engines is a harmonic damper (or harmonic balancer, as they are often called). Found at the front of the engine attached to the snout of the crankshaft, harmonic dampers are used to quell the harmonics of the crankshaft.
